SQ CEMENT-TYPE WIRE WOUND (METAL OXIDE FILM) RESISTORS

Wire Wound Resistor, Cement Type SQ
Wire wound resistors are made by winding the resistance wire on the alkaliess ceramic core, then coated with non-corrosive, heat-proof and humidity-proof material. Cement type is sealed with special nonflame cement in the ceramic package.


Features :
  1. Small dimension, excellent stability in high temperature, resistant to humidity and shock with economic price.
  2. Completely insulated character suitable for printed circuit board.
  3. Precise resistance value with better life proof.
  4. In high resistance value, the winding core will be replaced by Metal Oxide Film cutting core (RS)
  5. Super heat dissipation; small linear temperature coefficient.
  6. Instant overload capability; low noise figure and without annual shift on resistance value.

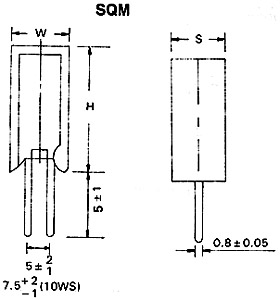

TYPE DIMENSION (mm) RESISTANCE RANGE
SQM Hadd.gif (63 bytes)1.5 Wadd.gif (63 bytes)1 Sadd.gif (63 bytes)1 SQM RS+SQM
2W 20 12 8 0.1-8.0 81-50K
3W 25 12 8 0.1-180 181-50K
5W 25 13 9 0.1-180 181-50K
7W 39 13 9 0.1-430 431-47K
10W 51 13 12 0.1-470 471-47K
10WS 35 16 12 0.1-430 431-47K

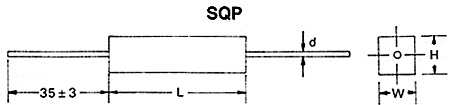

TYPE DIMENSION (mm) RESISTANCE RANGE([) MAX WORKING
VOLTAGE
SQP W±1 H±1 L±1.5 d±0.05 SQP RS+SQP
2W 7 7 18 0.6 0.1~82 @ 15V
3W 8 8 22 0.8 0.1~180 181~33K 350V
5W 10 9 22 0.8 0.1~180 181~50K 350V
7W 10 9 35 0.8 0.1~430 431~50K 500V
10W 10 9 48 0.8 0.1~470 471~50k 750V
15W 12.5 11.5 48 0.8 0.5~600 601~150K 1000V
20W-25W 14 13.5 60 0.8 0.8~1K 1.1~150K 1000V
*Notes: 1. Max Overload Voltage is 2 times of Max Working Voltage.
2. Too low or too high ohmic value can be supplied only case by case.
3. Resistance value under 0.5
[ the tolerance shall be add.gif (63 bytes)10%
4. KNP non-inductive is also supplied.


UGeneral SpecificationsU   UCharacteristicsU   UElectrical PerformanceU
