| TYPE |
DIMENSION ( mm ) |
RESISTANCE RANGE(£[) |

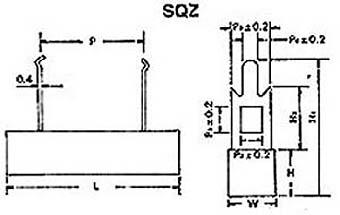

| SQZ |
L 1.5 |
W1 |
H1 |
P1.5 |
P1 |
P2 |
P3
|
P4 |
H11 |
H21 |
SQZ |
RS+SQZ |
| 5W |
25(28) |
10 |
10 |
9.5(15) |
4.2 |
2 |
5 |
1.5 |
25 |
10.5 |
0.1-130 |
131-50K |
| 7W |
36 |
10 |
10 |
20 |
4.2 |
2 |
5 |
1.5 |
25 |
10.5 |
0.1-430 |
431-50K |
| 10W |
48 |
10 |
10 |
32 |
4.2 |
2 |
5 |
1.5 |
25 |
10.5 |
0.2-470 |
471-50K |
| 15W |
48 |
12.5 |
12 |
32 |
4.2 |
2 |
5 |
1.5 |
26 |
10.5 |
1-600 |
601-150K |
| 20.25W |
60 |
15 |
13 |
42 |
7 |
6 |
10 |
2.7 |
36 |
15.0 |
1-1K |
1.1K-150K |
| TYPE |
DIMENSION ( mm ) |
RESISTANCE RANGE(£[) |
MAX
WORKING
VOLTAGE |

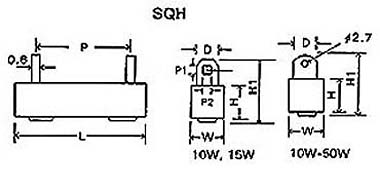

| SQH |
A1 |
B1 |
L1.5 |
P1 |
H1 |
D0.5 |
P10.2 |
P20.2 |
SQH |
RS+SQH
|
| 10W |
10 |
9 |
48 |
32 |
21 |
5 |
2.5 |
2 |
0.1~500 |
500~50K |
500V |
| 15W |
12.5 |
11.5 |
48 |
32 |
21 |
5 |
2.5 |
2 |
1~1K |
1K~150K |
600V |
| 20W |
14.5 |
13.5 |
60 |
43 |
24 |
6 |
3.0 |
2.5 |
1~2K |
2K~150K |
700V |
| 30W |
19 |
19 |
75 |
56 |
29 |
6 |
3.0 |
2.5 |
1~2K |
¡@ |
700V |
| 40W |
19 |
19 |
90 |
67 |
29 |
6 |
3.0 |
2.5 |
2~3K |
¡@ |
700V |
| 50W |
19 |
19 |
90 |
67 |
29 |
6 |
3.0 |
2.5 |
2~3K |
¡@ |
700V |
|
| *Notes: |
1. Max Overload Voltage is 2 times
of Max Working Voltage.
2. Too low or too high ohmic value can be supplied only case by case. |
|
| TYPE |
DIMENSION ( mm ) |
OHM(£[) |

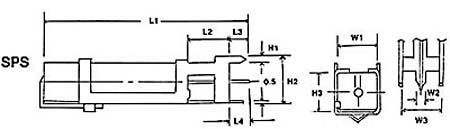

| SPS |
L1 |
L2
|
L3 |
L4 |
H1
|
H2 |
H3 |
W1
|
W2 |
W3 |
| 5W |
31 |
5 |
4 |
6 |
1.5 |
11 |
9.5 |
10 |
1.5 |
10.5 |
0.47-220 |
| 7W |
49 |
10 |
4 |
6 |
1.5 |
11 |
9.5 |
10 |
1.5 |
10.5 |
0.51-470 |
| 10W |
62 |
10 |
4 |
6 |
1.5 |
11 |
9.5 |
10 |
1.5 |
10.5 |
1.0-680 |
| 15W |
62.5 |
10 |
4.5 |
6.5 |
2.5 |
14 |
12.5 |
12.5 |
2.5 |
13.5 |
1.0-820 |
| 20W |
75 |
10 |
5 |
6.5 |
2.7 |
14.5 |
13 |
14.5 |
2.7 |
15 |
1.0-1K |
| 25W |
75 |
10 |
5 |
6.5 |
2.7 |
14.5 |
13 |
14.5 |
2.7 |
15 |
1.0-1K |
| ELECTRICAL PERFORMANCE |
| TEST ITEMS |
CONDITION |
SPEC. |
| Resistance Temp Coeff. |
-30¢J ~ 200¢J |
300ppm / ¢J |
| Short Time Over Load |
2.5 times of rated
wattage for 5 sec. |
2
% |
| Rated Load |
Rated wattage for 30
min. |
1
% |
| Voltage Withstanding |
800 v AC 1 min. |
no charge |
| Insulation Resistance |
500 v meagger |
1000M£[ |
| Temp. Cycle |
-30¢J ~ 85¢J for 5 cycles |
1
% |
| Load Life |
70¢J on-off cycle 1000hrs. |
5
% |
| Moisture-proof Load
Life |
40¢J95% RH on-off cycle 500 hrs. |
5
% |
| Incombustibility |
16 times of rated
wattage for 5 min. |
not flamed |
|
| *Notes: |
1.Max Overload Voltage is 2 times
of Max Working Voltage.
2.Too low or too high ohmic value can be supplied only case by case.
3."RS+SQ" short time over load is 2 times of rated wattage for 5 sec. |
|
¡UGeneral
Specifications¡U ¡UCharacteristics¡U ¡UElectrical Performance¡U
