Specifications and test methods
ITEM SPECIFICATION TEST METHOD
DC Resistance J:add.gif (63 bytes)5%, Fadd.gif (63 bytes)1% JIS C 5202 5.1
Temperature
Coefficient of
Resistance(TCR)		 J: add.gif (63 bytes) 200 ppm/¢J

F: add.gif (63 bytes) 100 ppm/¢J		 JIS C 5202 5.2 / IEC 115-1 4.8.4.2
                                T1           T2
Test temperature:25¢J¡÷-55¢J
                               25¢J¡÷-55¢J

T2:                  Test temperature
R1:Resistance at reference temperature(T1)
R2:Resistance at test temperature(T2)

Short Time Overload J:£GR¡Øadd.gif (63 bytes)(2%+0.1£[)
2.5xRated voltage (Max. Overload
Voltage) for 5 sec.
measure resistance after 30 minutes
Resistance to
Solder Heat 		J:£GR¡Øadd.gif (63 bytes)(1%+0.1£[)
No mechanical damage 		JIS C 5202 6.4 / IEC 115-1 4.18
With 260 add.gif (63 bytes)5¢J for 10 add.gif (63 bytes)1 sec.
Solderability Over 95% of termination must be
covered with solder 		JIS C 5202 7.4 / IEC 115-1 4.17
After immersing flux, dip in the 235 add.gif (63 bytes)5¢J
molten solder bath for 2 add.gif (63 bytes)0.5 sec.
Temperature Cycle J:£GR¡Øadd.gif (63 bytes)(1%+0.1£[)
No mechanical damage		 JIS C 5202 7.4 / IEC 115-1 4.19
Repeat 5 cycles as follow
-55¢J(30minutes)+25¢J(10~15minutes)
+125¢J(30minutes)+25¢J(10~15minutes)
Temperature Strength £GR¡Øadd.gif (63 bytes)(0.5%+0.05£[)
No mechanical damage		 JIS C 5202 6.1
500g for 10 seconds
Load Life J:£GR¡Øadd.gif (63 bytes)(3%+0.1£[)
Permanent resistance change after 1000+
48/-0
hours (1.5 hours ON,0.5hour OFF)
at RCWV or Max.
Keep the resistor at 70add.gif (63 bytes)3¢Jambient
Load Life Humidity J:£GR¡Øadd.gif (63 bytes)(3%+0.1£[)
Maintain the temperature of the resistor at
voltage applied. Cycle ON for 1.5hours
and Off for 0.5hour for 1000+48/-0 hours.
After one hour, measure the resistance
value.
Intermittent Overload £GR¡Øadd.gif (63 bytes)(5%+0.1£[) No mechanical damage JIS C 5202 5.8
2.5xRated Voltage(Max.Overload Voltage)
,1secON,25sec OFF, test 10,000 cycles
Insulation Resistance Between termination and coating
must be over 1000 M£[		 JIS C 5202 5.6 / IEC 115-1 4.6.1.1
Test voltage: 100add.gif (63 bytes)15V

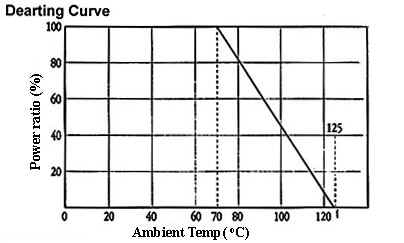

For resistors operated in ambient temperatures above 70º C , power rating must be derated in accordance with the curve below



TYPE DESIGNATION
  FCR
--------		       05
-----------		        J
-----------		                  T
----------------------------  		               103
--------------------------
  Type      Size
03 - 0603
05 - 0805
16 - 1206 		Tolerance
F- add.gif (63 bytes)1%
J - add.gif (63 bytes)5%		             Packing
T - Paper tape , 5000pcs
B - In bulk		       Resistance Value
5% - 3 Digit
         1st 2 significant
         3rd multiplier (10n)
1% - 4 Digit
         1st 3 significant
         4th multiplier (10n)
         3 Digit (0603 only
         JIS C 5201

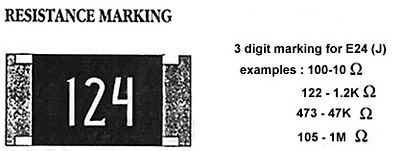

¡USpecifications¡U   ¡UDreading Curve¡U   ¡UType Designation¡U   ¡UResistance Marking¡U

  ¡UMarking Table¡U   ¡UTape and Reel Package¡U
