RSN RSS Metal Oxide Film Resistor NON-Flammable
RSN Metal Oxide Film Resistor(Nonflame)
    Through the developments of electronic equipment's and computerized devices, it has been urging all kinds of components to minimization, light-weight, durability, high stability and reliability. To keep quality stable under high temperature operation, the per unit filmarea shall take large load. Metal Oxide Film resistoris the one that can satisfy the requirements. RSS:Small-sized metal oxide film resistor, use selected ceramic, with high performance which is suitable for compact sets.
Features:
  1. Small in size comparatively.
  2. Electrical and mechanical stability and high reliability.
  3. Nonflame painting, "Freon" Proof, resistive to heat & high  temperature.
  4. Annual shift is low for the strengthen metal oxide film.
  5. Low noise; can produce high resistance value which wire wound resistor can not reach.

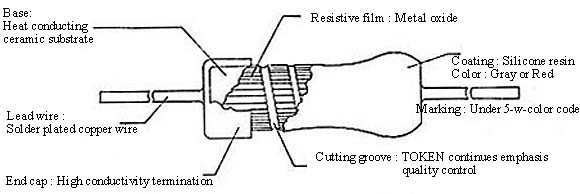

CONSTRUCTION :

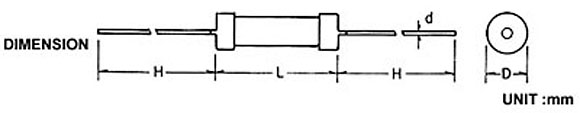

General Specifications
TYPE L D H dadd.gif (63 bytes)0.05 MAX Working
Voltage 		Dielectric Withstanding
Voltage
RSS RSN RSS RSN RSS RSN
1/2W 1/4W 6.0add.gif (63 bytes)0.3 2.3add.gif (63 bytes)0.3 26add.gif (63 bytes)1 0.55 200V 300V 400V 500V
1W 1/2W 9.0add.gif (63 bytes)0.5 3.0add.gif (63 bytes)0.5 26add.gif (63 bytes)1 0.60 250V 350V 500V 600V
2W 1W 11add.gif (63 bytes)1.0 4.0add.gif (63 bytes)0.5 26add.gif (63 bytes)1 0.80 300V 350V 600V 700V
3W 2W 15add.gif (63 bytes)1.0 5.0add.gif (63 bytes)0.5 35add.gif (63 bytes)3 0.80 350V 350V 700V 700V
5W 3W 17add.gif (63 bytes)1.0 6.0add.gif (63 bytes)0.5 35add.gif (63 bytes)3 0.80 350V 500V 700V 1000V
6W 5W 24add.gif (63 bytes)1.0 8.0add.gif (63 bytes)0.5 38add.gif (63 bytes)3 0.80 500V 700V 800V 1000V
7W 6W 24add.gif (63 bytes)1.0 8.0add.gif (63 bytes)0.5 38add.gif (63 bytes)3 0.80 500V 700V 800V 1000V
10W 7W 41add.gif (63 bytes)1.0 8.0add.gif (63 bytes)0.5 38add.gif (63 bytes)3 0.80 750V 850V 850V 1000V
Ħ@ 10W 53add.gif (63 bytes)1.0 8.0add.gif (63 bytes)0.5 38add.gif (63 bytes)3 0.80 750V 850V 850V 1000V



ĦUGeneral SpecificationsĦU   ĦUCharacteristicsĦU   ĦUTape TypeĦU   ĦUMB , FK FormĦU
