CHIP RESISTOR NETWORKS RCN 06-10R/S

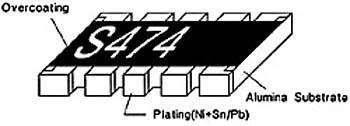

CONSTRUCTION



Unit:mm
Dimensions
Type 		L W H L1 L2 P Q
RCN06-10R
RCN06-10S 		6.4add.gif (63 bytes)0.2 3.1add.gif (63 bytes)0.2 0.55add.gif (63 bytes)0.1 0.5add.gif (63 bytes)0.3 0.5add.gif (63 bytes)0.2 1.27add.gif (63 bytes)0.1 0.8add.gif (63 bytes)0.2



RATING
Type Rated
Power
at70¢J		 Max.
Working Voltage 		Max.
Overload
Voltage 		T.C.R.
(ppm/¢J) 		Resistance
Range 		Number of
Terminals 		Number of
Resistors 		Operating
Temperature
Range
RCN06-10R
RCN06-10S 		1/16W 50V 100V add.gif (63 bytes)200 10£[-1M£[ 10 8 -55¢J~ +125¢J
