VHDCI 0.8MM CONNECTORS

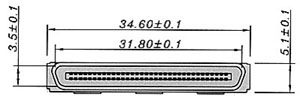

0.8MM  OFFSET PLUG CONNECTORS





P/N: HI-008068-B

ELECTRICAL
CHARACTERISTICS
CONTACT CURRENT RATING:
1 AMPERE
DIELECTRIC WITHSTANDING
VOLTAGE:
250 VAC
INSULATION RESISTANCE:
500 MEGOHMS MIN.
CONTACT RESISTANCE:
60 MILLOHMS MAX.
MATERIALS
CONTACTS:
PHOSPHOR BRONZE
INSULATOR:
THERMOPLASTIC 94V-0
SHELL:
COLD ROLLER STEEL
FINISHES
CONTACT:
5g"(30g") MIN. GOLD ON
MATING END;
ALL UNDERPLATED 1.3g MIN. NICKEL
SHELL:
3g MIN. NICKEL OR BRIGHT
TIN OVER 2g MIN. COPPER
ENVIRONMENT
OPERATION TEMPERATURE:
-55X C TO +105X C
