Ceramic Resonator ZTB Series 190-1250 KHz

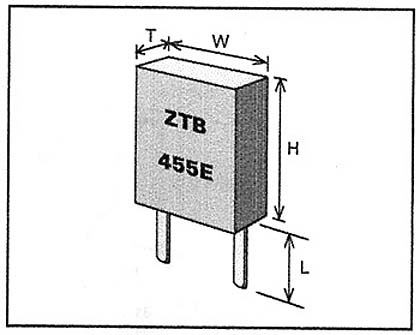

Dimension


Technical Characteristics


Part Number

Frequency
Accurancy

Resonant
Impedance (£[)

Stability in
Temperature
(20~80¢J)

Aging for
Ten Year

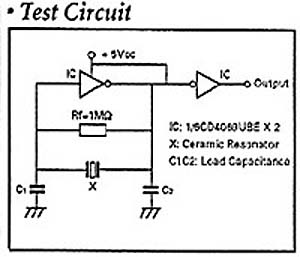

Load Capacitance

C1

C2

ZTB190 ~ 249D


¡Ø20



330

470

ZTB250 ~ 374D


¡Ø20



220

470

ZTB375 ~ 429P


¡Ø20



120

470

ZTB430 ~ 509E


¡Ø20



100

100

ZTB510 ~ 699P


¡Ø30



100

100

ZTB700 ~ 1250J


¡Ø50



100

100

ZTB500F2


¡Ø20



-

-

ZTB503F2


¡Ø20



-

-


Frequency range

W(mm)
Width

T(mm)
Thickness

H(mm)
Height

S(mm)
Lead Space

L(mm)
Lead Length

190 ~ 249

13.5

3.8

14.7

10.0

8.0

250 ~ 374

11.0

3.8

12.2

7.7

7.0

375 ~ 429

7.9

3.6

9.3

5.0

4.0

430 ~ 669

7.0

3.5

9.0

5.0

4.0

700 ~ 1250

5.2

2.8

6.8

2.5

3.5
