Ceramic Resonator ZTA Series 2.00-12.0 KHz

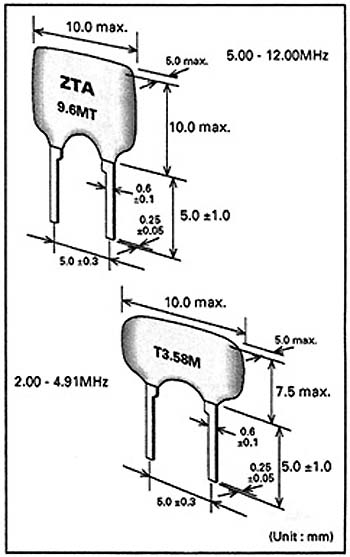

Dimension


Frequency range (MHz)

Width (mm)

Thickness (mm)

Height (mm)

2.00 - 4.91

10.0

5.0

7.5

5.00 - 13.00

10.0

5.0

10.0

13.01 - 19.99

10.0

5.0

12.0

¡@

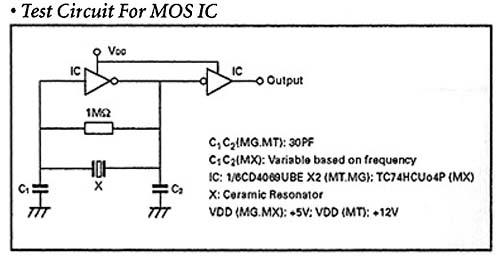

Technical Characteristics

Part Number

Frequency
Rang
( MHz)

Frequency
Accuracy
(25¢J)

Stability in
Temperature
(-20~+80¢J)

Operating
Temperature(¢J)

Aging For
Ten Years

ZTA¡¼¡¼¡¼MG

2.00 - 5.00



-20 add.gif (63 bytes) 80


ZTA¡¼¡¼¡¼MT

5.00 - 13.00



-20 add.gif (63 bytes) 80


ZTA¡¼¡¼¡¼MX040

13.01 - 19.99



-20 add.gif (63 bytes) 80
