CERAMIC
FILTER XT Series for TV/VCR Stage

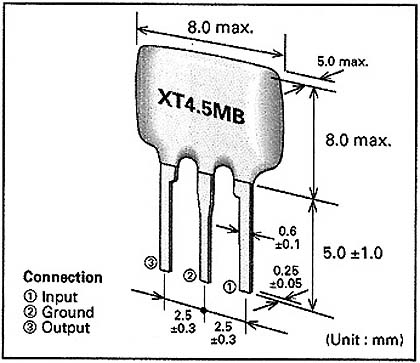

Dimension
| Technical Characteristics |
| Part
Number |
Trap
Attenuation
(at nominal frequency)
(dB) |
20dB
Attenuation
Band Width (KHz) |
30dB
Attenuation
Band Width (KHz) |
| XT4.43MB |
』25 ( 40 ) |
- |
』40 ( 70 ) |
| XT4.5MB |
』35 ( 45 ) |
- |
』50 ( 80 ) |
| XT5.5MB |
』35 ( 45 ) |
- |
』70 ( 120 ) |
| XT6.0MB |
』35 ( 45 ) |
- |
』70 ( 120 ) |
| XT6.5MB |
』35 ( 45 ) |
- |
』70 ( 120 ) |
|
