CERAMIC
FILTER LTP 455 Series for AM

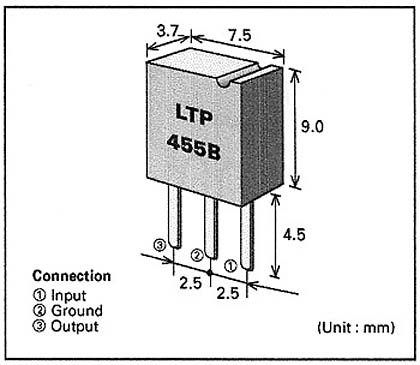

Dimension

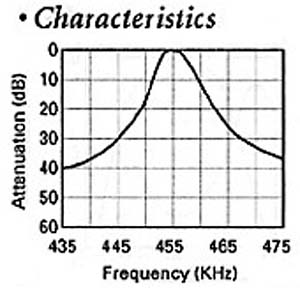

| Technical Characteristics |
Part Number |
3dB Band
width (KHz) |
Selectivity |
Insertion Loss
(dB) |
Input/Output
Impedance (Ohm) |
Composition |
-9KHz (dB)
-9KHz off |
-9KHz (dB)
-9KHz off |
LTP455A |
10±3 |
¡Ù5 |
¡Ù3 |
¡Ø5 |
3000 |
1 element |
LTP455B |
10±3 |
¡Ù5 |
¡Ù3 |
¡Ø5 |
3000 |

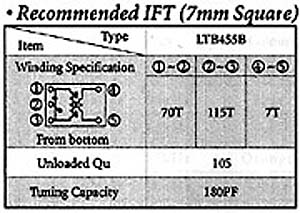

1 element with 1FT |
|
¡»Center frequency
(FC) is available in a range of 450-470KHz
¡»The nominal
frequency tolerance is  2KHz |
¡@
