CERAMIC FILTER
CFTM 455/465 Series for communication

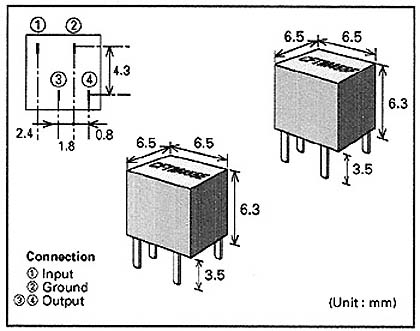

Dimension



Technical Characteristics
Part
Number 		Ripple 6dB
Bandwidth
(KHz)min. 		Attn.
BW Bandwidth
(KHz)min. 		Stop
Band Attn
(dB) min. 		Insertion
Loss(dB)
max. 		In/Output
Impedance
(K.Ohm) 		Operating
Temperature
CFTM455D
2dB max.		 add.gif (63 bytes)10 add.gif (63 bytes)20 27 4 1.5
-20¢J ~+80¢J
CFTM455E add.gif (63 bytes)7.5 add.gif (63 bytes)15 27 4 1.5
CFTM455F add.gif (63 bytes)6 add.gif (63 bytes)12.5 27 4 2
CFTM455G add.gif (63 bytes)4.5 add.gif (63 bytes)10 27 4 2
CFTM455H add.gif (63 bytes)3 add.gif (63 bytes)9 25 4 2
CFTM455HT add.gif (63 bytes)3 add.gif (63 bytes)9 35 4 2





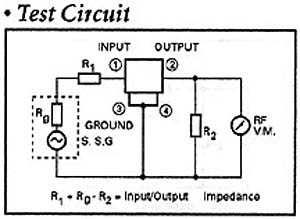

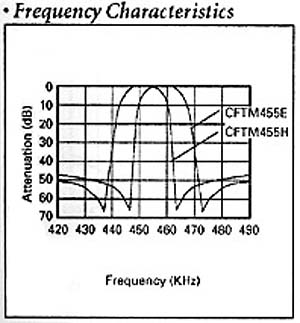

Notes :
CFTM 465¡¼has the same
electronic characteristics as
CFTM 455¡¼


Note: For safety reasons, connect the output of filter to the IF amplifier through a DC blacking capacitor. Avoid applying a direct current to the output of ceramic filters.
