CERAMIC FILTER
CFT 455/465 Series for communication

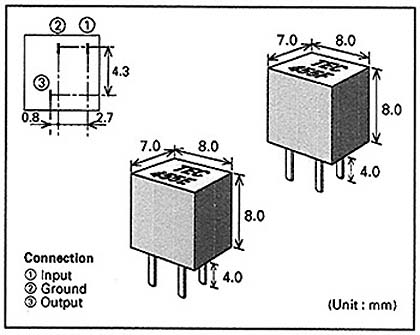

Dimension

Technical Characteristics

Part Number

Ripple

6dB Bandwidth
(KHz)min.

Attn.BW
Bandwidth
(KHz)min.

Stop Band
Attn(dB) min.

Insertion Loss
(dB) max.

In/Output
Impedance
(K.Ohm)

Operating
Temperature

CFT455D


2dB max.



27

4

1.5


-20¢J ~+80¢J

CTT455E



27

4

1.5

CFT455F



27

4

2

CFT455G



25

4

2

CFT455H



25

4

2

CFT455HT



35

4

2

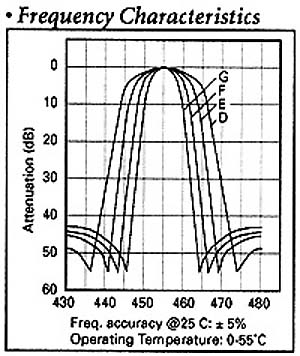

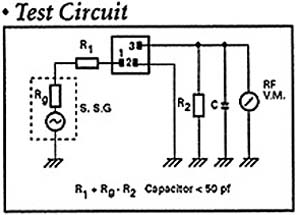

Electrical Features
Stop band attenuation is specified to
within 455 ADD.GIF (63 bytes)100KHz
Attenuation band width is specified
by the width of:
CFT: 40dB and CF: 50dB


Note : For safety reasons, connect the output of filter to the IF amplifier through a DC blacking capacitor.
Avoid applying a direct current to the output of ceramic filters.
