CERAMIC FILTER
CF 455/465 Series for communication

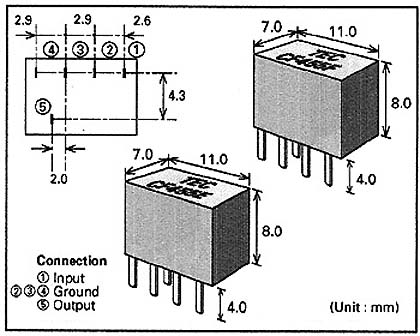

Dimension

Technical Characteristics

Part
Number

Ripple

6dB
Bandwidth
(KHz)min.

Attn.BW
Bandwidth
(KHz)min.

Stop Band
Attn(dB)
min.

Insertion
Loss(dB)
max.

In/Output
Impedance
(K.Ohm)

Operating
Temperature

CF455D


2dB max.



35

4

1.5


-20¢J ~+80¢J

CT455E



35

4

1.5

CF455F



35

4

2

CF455G



35

4

2

CF455H



35

4

2

CF455HT



35

4

2

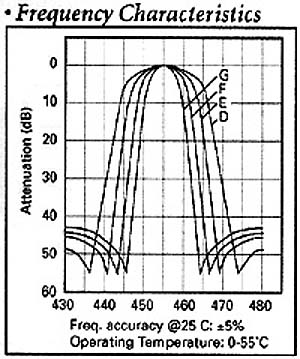

Electrical Features
Stop band attenuation is specified to
within 455 add.gif (63 bytes)100KHz
Attenuation band width is specified by the width of:
CFT: 40dB and CF: 50dB


Note : For safety reasons, connect the output of filter to the IF amplifier through a DC blacking capacitor. Avoid applying a direct current to the output of ceramic filters.
